Rain sensor irrigation timer LCD Screen Electronic Automatic Sprinkler Controller Outdoor Garden Watering Device Irrigation Tool

Rain sensor irrigation timer LCD Screen Electronic Automatic Sprinkler Controller Outdoor Garden Watering Device Irrigation Tool

230

in stock

Quickly Shipment



  • $ 603.36  $ 335.20

Rain sensor irrigation timer LCD Screen Electronic Automatic Sprinkler Controller Outdoor Garden Watering Device Irrigation Tool

1_011_021_031_041_051_061_072_02

Item Number:85960 rain sensor irrigation timer

Item Size:86x56x160mm

Net Weight:390±10g

Ingress protection: IPX5

Working Pressure:0.05- 0.8 Mpa

Working Temperature:1-45℃

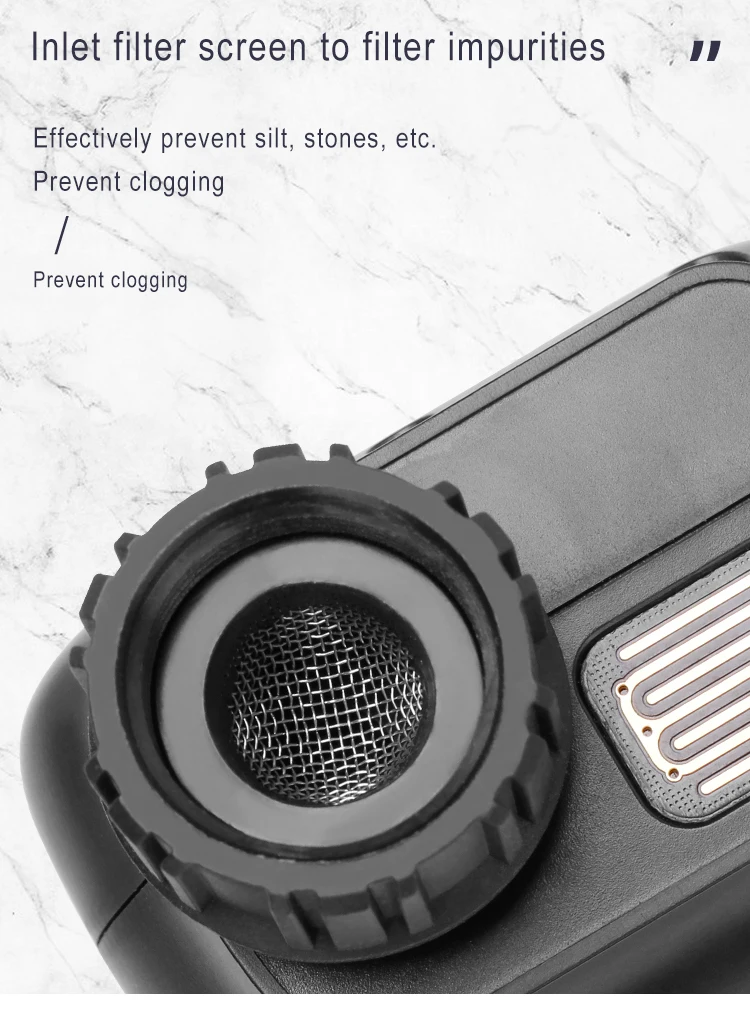

Hose Tap Connection:3/4 ” Intemal Thread

Water Outlet: 3/4 " Extemal Thread

Power Supply: 2x 1.5V 'AA' Alkaline Batteries

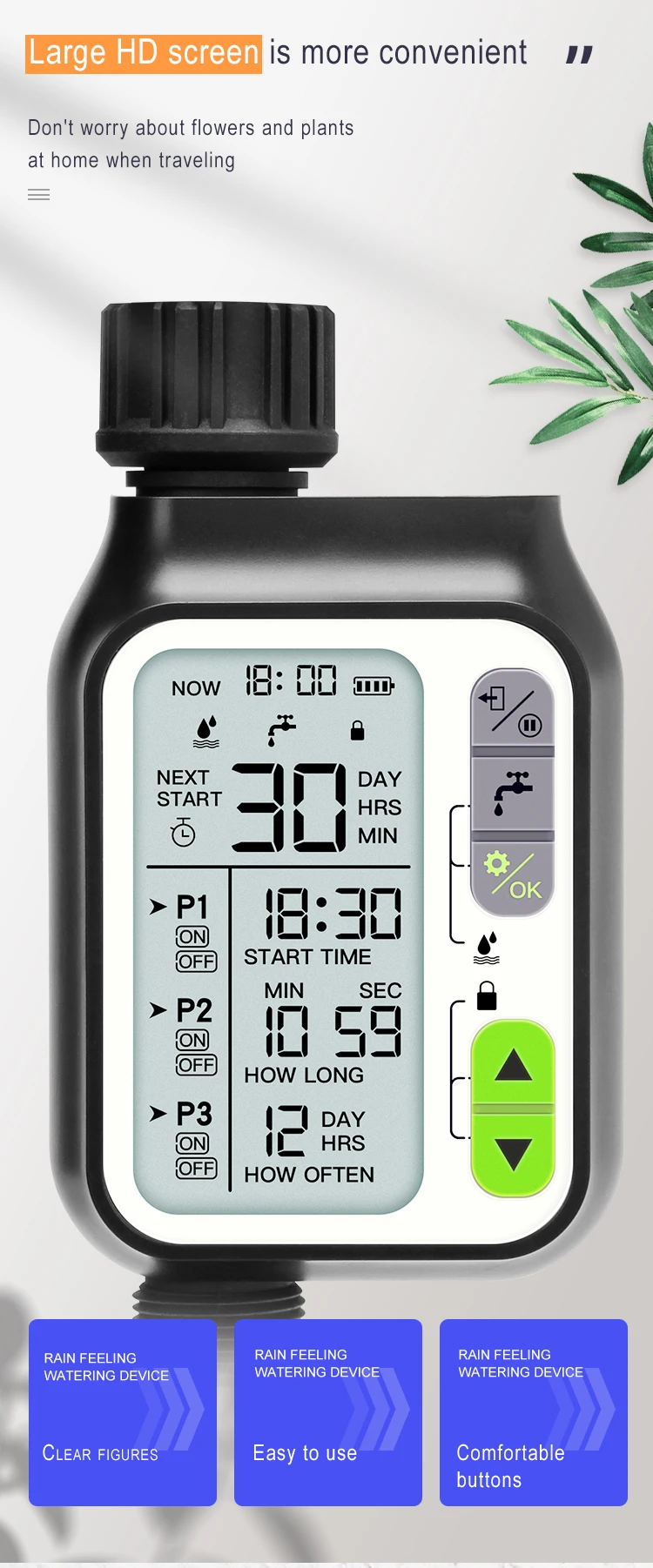

operating instructions





2_03_01

1:Rain sensor

2:NOW:Current Time

3:Lrrigation Indication

4:Battery Level

5:Child Lock

6:NEXT START:Be Prompted Automatically

7:START TIME For Current Timing        Program : To Set In 24-Hour System

8:HOW LONG For Current Timing Program:0m 1s,0m 2s,0m 3s,…99m 59s

      HOW LONG For Manual Watering:1s,2s,3s ... 59s,1m,2m,3m...99m

9:HOW OFTEN For Current Timing Program:1h,2h,3h ...... 23h.  1d,2d,3d ...... 15d

      *s:second(s), m:minute(s), d:day(s)

10:3 independent timing programs can be set

2_03_02

1:Exit key: Press once to return to the main interface during the setting procedure

2:Pause button: Press and hold for 3 seconds, the product enters the OFF interface and all irrigation functions are suspended.

3:Manual irrigation key:Click to set the manual watering time and then click OK to start watering, click this key to close when not watering

4:Set / confirm key: set the timing irrigation program and confirm the setting

5:Press the " QQ截图20200505130840 " and " 操作 " buttons at the same time for more than 3 seconds to turn on the water sensing function, if not needed,  press the two buttons to turn off

6:Press the "  ▲  " and "  ▼  " buttons at the same time for more than 4 seconds to turn on the child lock, and when closing, press the same button for 4 seconds.

7:"  ▲  ": Digital upward

8:"  ▼  ": Digital down

2_012_042_062_072_082_092_102_11
